• Essentials |
|||
|
Status |
Launched |
||
|
Launch Date |
August , 2016 |
||
|

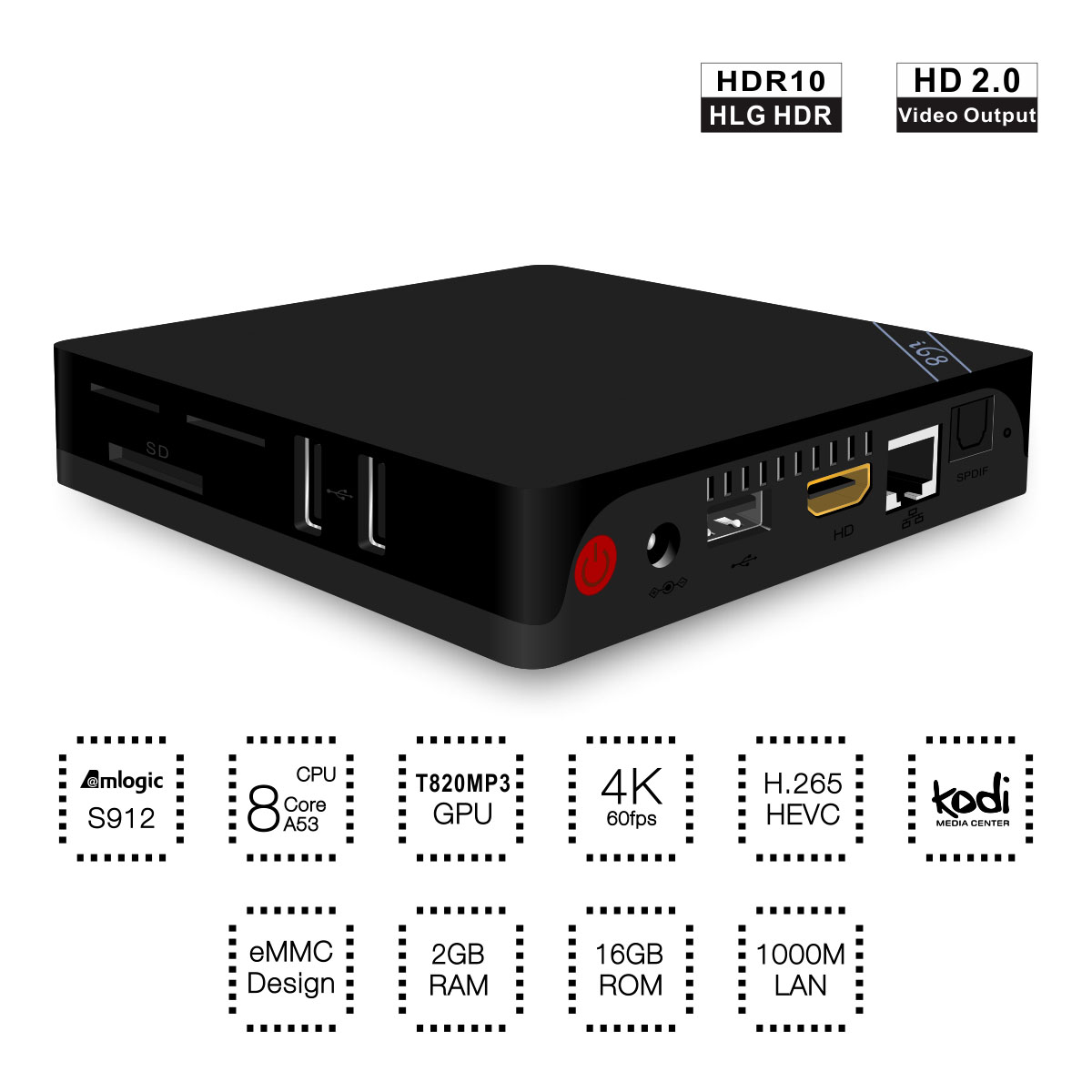

Product model |
I68 |
||
|
Dimension |
120*120*24mm |
||
|
Processor Number |
Amlogic S912 |
||
|
•System Config |
|||
|
OS |
Android 6.0 |
||
|
Language |
Multi -language |
||
|
CPU |
Amlogic S912 Octa Core ARM Cortex-A53 CPU up to 2GHz(DVFS) |
||
|
GPU |
ARM Mali-T820MP3 GPU up to 750MHz(DVFS) |
||
|
RAM |
DDR3 2GB |
||
|
ROM |
Onboard eMMC Flash 16GB |
||
|
Ethernet |
1000Mbps LAN |
||
|
WIFI |
IEEE 802.11a/b/g/n/ac，2.4G+5.8G+ac |
||
|
BT |
BT 4.0 |
||
|
Antenna |
Built-in antenna for WIFI |
||
|
Expand Memory |
Micro SD Card (Maximum support 32GB) |
||
|
• Button & Ports |
|||
|
Button |
1*Power Button |
||
|
DC-in |
1*DC in Port |
||
|
USB2.0 |
3* Standard USB Port |
||
|
HD |
1*HD Type Port |
||
|
RJ45 |
1*RJ45 (1000Mbps network connection) |
||
|
SPDIF |
1*S/SPDIF (5.1CH, 7.1CH) |
||
|
SD Card Slot |
1* SD card slot |
||
|
Power LED |
1* power LED with two - color |
||
|
•Powerful codec capabilities |
|||
|
UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+
FHD 1080p 60fps HW encoding, supports H.264 |
|||
|
VP9-10 Profile-2 up to 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P @60fps
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to l080P@60fps |
|||
|
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps(ISO-11172)
RealVideo 8/9/10 up to 080P@60fps
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding(ISO/IEC-10918)
Supports JPEG thumbnail,scaling,rotation and transition effects
Supports*.mkv,*.wmv,*.mpeg,*.dat,*.avi,*.iso,*mp4,*.rm and*.jpg file formats |
|||
|
•Video Post-Processing Engine |
|||
|
1. Supports HDR10 and HLG HDR processing
2. Motion adaptive 3D noise reduction filter
3. Advanced motion adaptive edge enhancing de-interlacing engine
4. 3:2 pull-down support
5. Programmable poly-phase scalar for both horizontal and vertical dimension for zoom and windowing
6. Programmable color management filter(to enhance blue,green,red,face and other colors)
7. Dynamic Non-Linear Luma filter
8. Deblocking filters
9. Programmable color matrix pipeline
10. video mixer: 2 video planes and 2 graphics planes per video output |
|||
|
1. Built-in HD 2.0 transmitter including both controller and PHY with CEC,HDR and HDCP 2.2,4Kx2K@60 max resolution output
2. CVBS 480i/576i standard definition output
3. Supports and standard SD/HD/FHD video output formats: 480i/p,576i/p,720p,1080i/p and 4Kx2K |
|||
|
•Audio Decoder and Input/Output |
|||
|
1. Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
2. 12S audio interface supporting 2-channel input and 8-channel(7.1) output
3. Built-in serial digital audio SPDIF/IEC958 output and PCM input/output
4. Built-in stereo audio DAC
5. Stereo digital microphone PDM input
6. Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
|||
|
•Power management |
|||
|
Power management |
Adapter DC5V 2A(100-240V,50/60Hz) |
||
|
•Environment |
|||
|
Work Environment |
5°C -- 35°C，30%--90% Humidity |
||
|
Storage Environment |
-20°C -- 60°C，10%--90% Humidity |
||
