•Essentials |
||
|
Status |
Launched |
|
|
Launch Date |
March 2016 |
|
|
Product model |
Mini M8S II |
|
|
Dimension |
110*110*17mm |
|
|
Processor Number |
Amlogic S905X |
|
|
•System Config |
||
|
OS |
Android 6.0 |
|
|
Language |
Multi -language |
|
|
CPU |
Amlogic S905X Quad Core ARM Cortex-A53 CPU up to 2GHz(DVFS) |
|
|
GPU |
Penta Core ARM Mali-450 GPU up to 750MHz+(DVFS) |
|
|
RAM |
DDR3 2GB |
|
|
ROM |
Onboard eMMC Flash 8GB |
|
|
Ethernet |
100Mbps LAN |
|
|

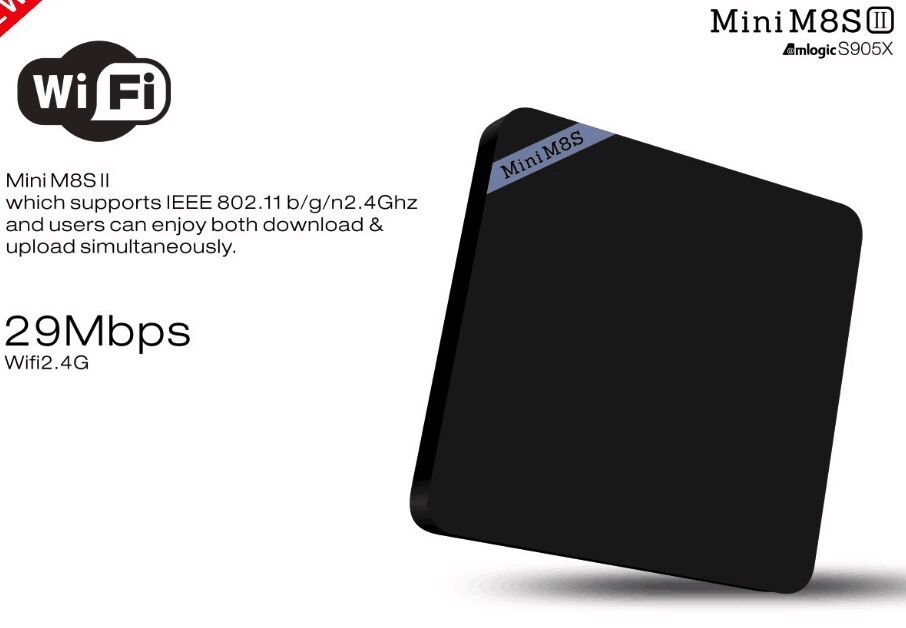

WIFI |
IEEE 802.11b/g/n，2.4G |
|
|
BT |
BT 4.0 |
|
|
Antenna |
Built-in antenna for WIFI |
|
|
Expand Memory |
Micro SD Card (Maximum support 32GB) |
|
|
• Button & Ports |
|||
|
Button |
Not Power Button（Connecting the power supplies，automated system operation） |
||
|
DC-in |
1*DC in Port |
||
|
USB2.0 |
2* |
||
|
HD |
1*HD A |
||
|
RJ45 |
1*RJ45 (100Mbps network connection) |
||
|
SPDIF |
1*S/SPDIF (5.1CH, 7.1CH) |
||
|
TF Card Slot |
1* |
||
|
Power LED |
1* power LED with two - color |
||
|
•Powerful codec capabilities |
|||
|
UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+ FHD 1080p 60fps HW encoding, supports H.264 |
|||
|
VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps H.264 AVC HP@L5.1 up to 4Kx2K@30fps H.264 MVC up to 1080P@60fps MPEG-4 ASP@L5 up to 1080P @60fps WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to l080P@60fps |
|||
|
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818) MPEG-1 MP/HL up to 1080P@60fps(ISO-11172) RealVideo WebM up to VGA Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixel resolution decoding(ISO/IEC-10918) Supports JPEG thumbnail,scaling,rotation and transition effects Supports*.mkv,*.wmv,*.mpeg,*.dat,*.avi,*.iso,*mp4,*.rm and*.jpg file formats |
|
•Video Post-Processing Engine |
|
1. Supports HDR10 and HLG HDR processing 2. Motion adaptive 3D noise reduction filter 3. Advanced motion adaptive edge enhancing de-interlacing engine 4. 3:2 pull-down support 5. Programmable poly-phase scalar for both horizontal and vertical dimension for zoom and windowing 6. Programmable color management filter(to enhance blue,green,red,face and other colors) 7. Dynamic Non-Linear Luma filter 8. Deblocking filters 9. Programmable color matrix pipeline 10. video mixer: 2 video planes and 2 graphics planes per video output |
|
1. Built-in HD 2.0b transmitter including both controller and PHY with CEC,HDR and HDCP 2.2,4Kx2K@60 max resolution output 2. CVBS 480i/576i standard definition output 3. Supports and standard SD/HD/FHD video output formats: 480i/p,576i/p,720p,1080i/p and 4Kx2K |
|
|
•Audio Decoder and Input/Output |
|
|
1. Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing 2. 12S audio interface supporting 2-channel input and 8-channel(7.1) output 3. Built-in serial digital audio SPDIF/IEC958 output and PCM input/output 4. Built-in stereo audio DAC 5. Stereo digital microphone PDM input 6. Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
|
|
•Power management |
|
|
Power management |
Adapter DC5V 2A(100-240V,50/60Hz) |
|
•Environment |
|
|
Work Environment |
5°C -- 35°C，30%--90% Humidity |
|
Storage Environment |
-20°C -- 60°C，10%--90% Humidity |
