Status |
Launched |
Launch Date |
March 2016 |
Product model |

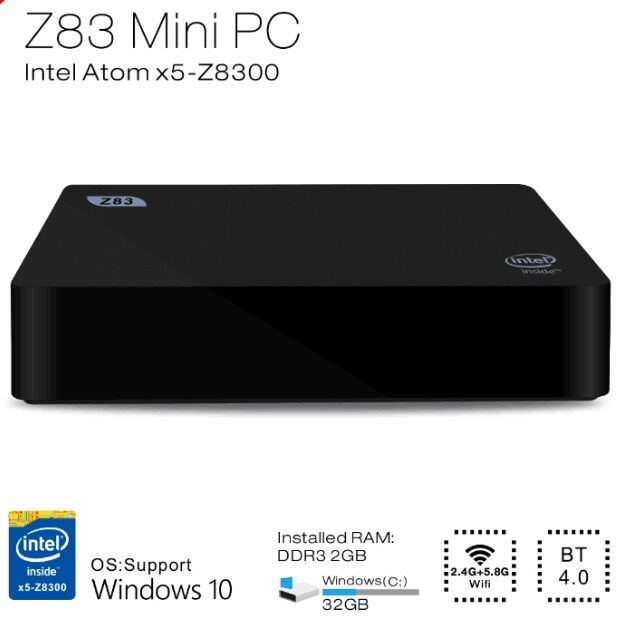

Z83 Mini PC |
Dimension |
119.5*119.5*24mm |
Processor Number |
x5-Z8300 |
Cache |
2 MB |
Instruction Set |
64-bit |
OS |
Support Windows10 |
Language |
Multi -language |
Intel CPU |
Intel Atom x5-Z8300 Processor (2M Cache, up to 1.84 GHz) |
Processor Graphics |
Intel HD Graphics |
Installed RAM |
DDR3 2GB |
System Disk |
Windows(C:) 32GB |
Ethernet |
1000Mbps LAN |
WIFI |
IEEE 802.11a/b/g/n,2.4G+5.8G |
Bluetooth |
BT 4.0 |
Antenna |
Built-in antenna for WIFI |
Expand Memory |
SD Card (Support 128GB) |
# of Cores |
4 |
# of Threads |
4 |
Processor Base Frequency |
1.44 GHz |
Burst Frequency |
1.84 GHz |
Scenario Design Power (SDP) |
2 W |
Cache |
2 MB |
Instruction Set |
64-bit |
Button |
1*Power Button |
DC-in |
1*DC in Port |
USB3.0 |
1* |
HD |
1*HD A |
RJ45 |
1*RJ45 (1000Mbps network connection) |
Headphone microphone |
1*Headphone microphone jack |
SD Card |
1* SD card slot |
USB2.0 |
2* |
Power LED |
1* power LED with two - color |
Power management |
Adapter DC12V 2A(100-240V,50/60Hz) |
Work Environment |
5°C -- 35°C,30%--90% Humidity |
Storage Environment |
-20°C -- 60°C,10%--90% Humidity |
Packing size |
130*121*86.5mm |
Intel 64-bit |
yes |
Intel Identity Protection Technology |
yes |
